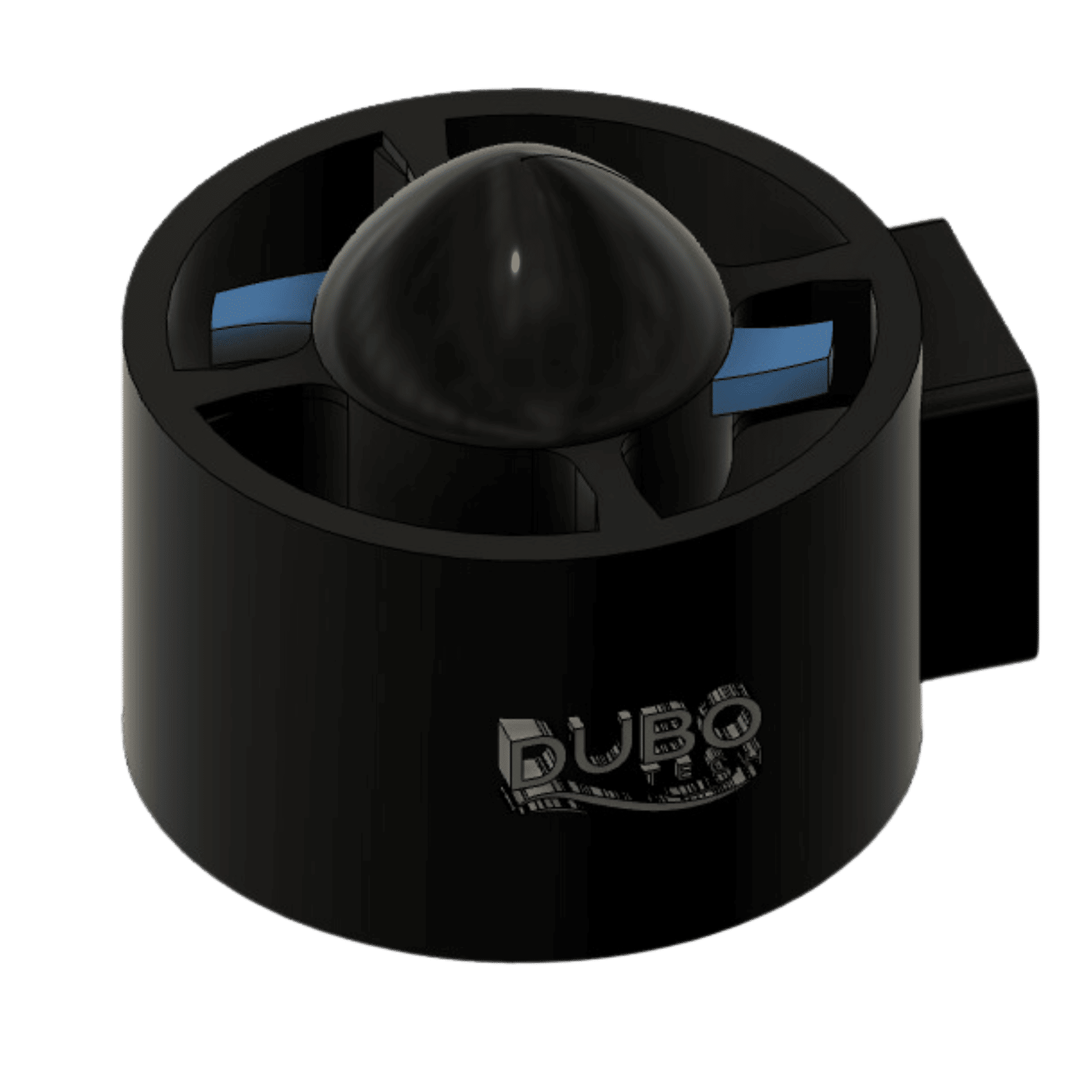

D500 Thruster

The D500 Thruster is our next-generation thruster with over three times as much thrust as the D200 Thruster. We designed it for high-power ROVs, surface vessels, and AUVs, as well as human-carrying applications like kayaks. It’s carefully designed to be rugged, powerful, and flexible in many applications.

The T500 is designed to achieve its maximum performance of 16.1 kgf (35.5 lb) of thrust at an operating voltage of 24V and power consumption of just over 1 kW. That said, it also operates well at 16V, the voltage of our BlueROV2 and lithium-ion battery. At 16V, it consumes a similar amount of power to the T200 Thruster, but is more efficient and generates 70% more thrust.

Patented Flooded Thruster Design

Like the D200, the D500 Thruster leverages our patented flooded thruster design, which is water-cooled, water-lubricated, and inherently pressure tolerant. It has an encapsulated stator and motor windings, a ruggedized and corrosion resistant magnet rotor, and high-performance plastic bearings. The body and propeller are made from impact resistant glass-filled polycarbonate plastic.

The D500 Thruster is a three-phase sensorless brushless motor and requires an electronic speed controller (ESC) for operation. We recommend the Basic ESC 500, which is designed for the high-power requirements of the T500 running at 24V, however, if you’re operating at 18V or less, you may also use the original Basic ESC without any reduction in performance.
